How Do I Change the Ignition Lock Cylinder?

Introduction

The ignition lock cylinder is a crucial component of a car’s ignition system. It is where you insert the key to start the vehicle. Over time, the lock cylinder can wear out, become jammed, or stop recognizing the key, making it difficult or impossible to start the car.

Replacing the ignition lock cylinder is a relatively straightforward process, but it requires precision and the right tools. In this guide, we will walk you through the step-by-step process to change the ignition lock cylinder safely and efficiently.

Also Read: The Dacha System in Stellaris: Can You Steal Habinte Technology

Signs You Need to Replace the Ignition Lock Cylinder

Before replacing the ignition lock cylinder, check if you’re experiencing these common issues:

✔ Key Won’t Turn – The key gets stuck or won’t rotate in the ignition.
✔ Car Won’t Start – The ignition switch does not engage even when the key turns.
✔ Key is Hard to Insert or Remove – Worn-out cylinder pins cause difficulty in inserting or removing the key.
✔ Steering Wheel Lock Issues – The steering wheel remains locked even when turning the key.
✔ Key Spins Freely – The key turns, but nothing happens.

If you notice these symptoms, replacing the ignition lock cylinder may be necessary.

Tools & Materials Needed

✔ Replacement ignition lock cylinder (compatible with your vehicle model)
✔ Flathead screwdriver
✔ Phillips screwdriver
✔ Socket wrench set
✔ Steering wheel puller (if needed)
✔ Needle-nose pliers
✔ Lubricant (optional, for stuck cylinders)
✔ New key (if required with the new lock cylinder)

Step-by-Step Guide to Changing the Ignition Lock Cylinder

Step 1: Disconnect the Battery

Turn off the car and remove the key from the ignition.
Disconnect the negative terminal of the battery to prevent electrical shocks or accidental starts.

Step 2: Remove the Steering Column Cover

Locate the screws under the steering column and remove them using a screwdriver.
Carefully pull apart the plastic covers to expose the ignition lock cylinder.

Step 3: Locate the Ignition Lock Cylinder

Find the ignition lock cylinder attached to the ignition switch housing.
Depending on your vehicle, you may need to remove additional dashboard panels for better access.

Step 4: Insert and Turn the Key

Insert the key into the ignition lock cylinder and turn it to the accessory (ACC) position.
If the key does not turn, try wiggling it gently or applying lubricant to loosen stuck components.

Step 5: Press the Release Pin

Find the small release pin or tab located on the ignition lock cylinder.
Use a flathead screwdriver or needle-nose pliers to press the pin while keeping the key in the ACC position.

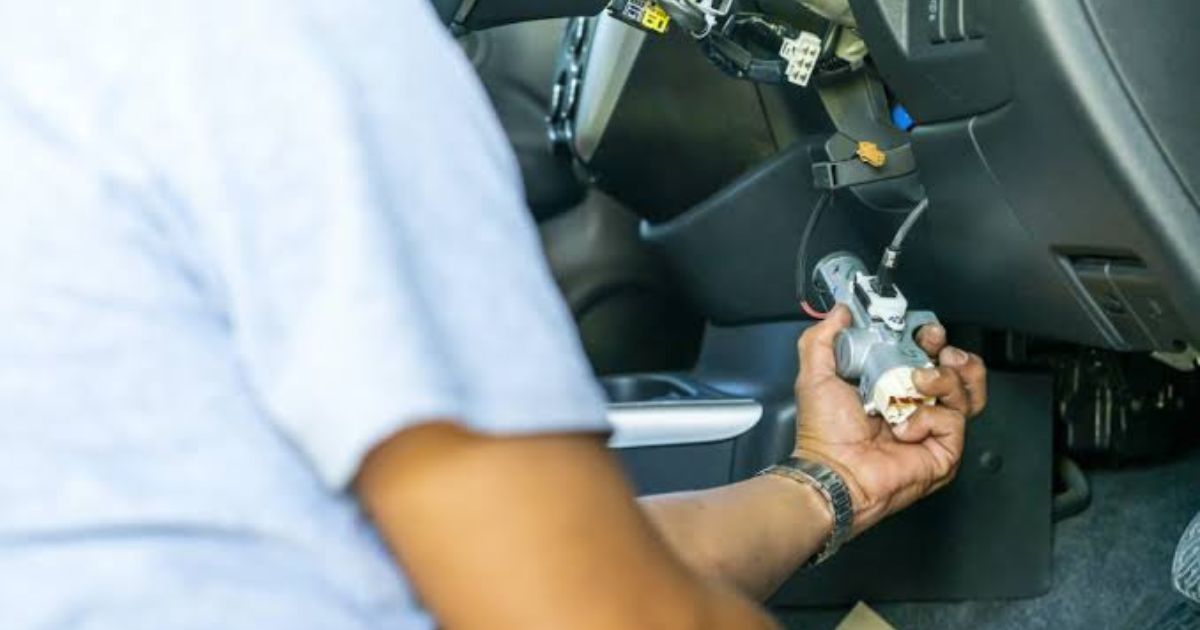

Step 6: Remove the Old Ignition Lock Cylinder

While holding the release pin, pull the ignition lock cylinder out of its housing.
If the cylinder is stuck, gently wiggle and pull until it slides out.

Step 7: Install the New Ignition Lock Cylinder

Take the new ignition lock cylinder and insert the key into it.
Align it properly with the ignition switch housing and slide it in until it clicks into place.
Turn the key to test its movement, ensuring it turns smoothly between the OFF, ACC, and START positions.

Step 8: Reassemble the Steering Column Cover

Replace any dashboard or steering column panels you removed earlier.
Secure them with screws and make sure all components are properly aligned.

Step 9: Reconnect the Battery and Test

Reconnect the negative battery terminal.
Insert the key into the ignition and test if the car starts and the steering wheel unlocks properly.
If everything works fine, the installation is complete!

Also Read: Hyperzon: Elevating Amazon Businesses with Data-Driven Strategies

Special Cases: What If the Key Won’t Turn?

If your key won’t turn to the ACC position, you may need to:

✔ Use lubricant – Apply WD-40 or graphite lubricant into the key slot to loosen the pins.
✔ Try a spare key – A worn-out key might not engage properly.
✔ Use a hammer & screwdriver (as a last resort) – Gently tap the lock cylinder while turning the key to free up stuck components.

👉 If all else fails, the ignition cylinder may need to be drilled out or removed by a professional locksmith.

When to Call a Mechanic or Locksmith

You may need professional help if:

❌ The ignition lock cylinder is completely jammed, and you can’t turn the key.
❌ Your car has an anti-theft system (transponder key) that requires reprogramming.
❌ You accidentally damage the ignition switch housing or steering column during removal.

Cost of Professional Replacement:
✔ Mechanic/Labor Cost – $100 – $300
✔ New Ignition Lock Cylinder – $50 – $250 (depends on vehicle make & model)
✔ Total Cost – $150 – $550

How to Prevent Ignition Lock Cylinder Problems

✔ Use a light keychain – Heavy keychains put pressure on the lock cylinder, causing premature wear.
✔ Turn the key gently – Avoid forcing the key to prevent internal damage.
✔ Keep the key slot clean – Regularly spray compressed air or lubricant to remove dust and debris.
✔ Duplicate keys early – A worn-out key can damage the lock pins over time.

Conclusion

Replacing an ignition lock cylinder is a manageable DIY task if you have the right tools and follow the correct steps. By disconnecting the battery, removing the steering column cover, and carefully installing the new cylinder, you can restore your ignition system and get your car running smoothly again.

If the key won’t turn or the ignition is completely jammed, consider seeking professional help to avoid causing further damage. Regular maintenance and gentle handling can help extend the life of your ignition system.

By following this guide, you can successfully replace the ignition lock cylinder and save money on mechanic fees!
